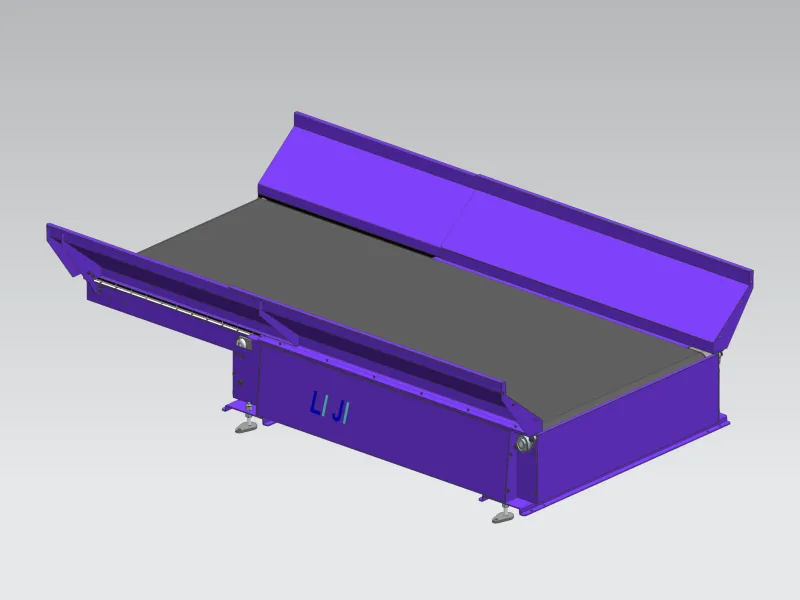

Fire isolation Telescopic machine

Through-wall function

Fire isolation function

To port unloading telescopic function

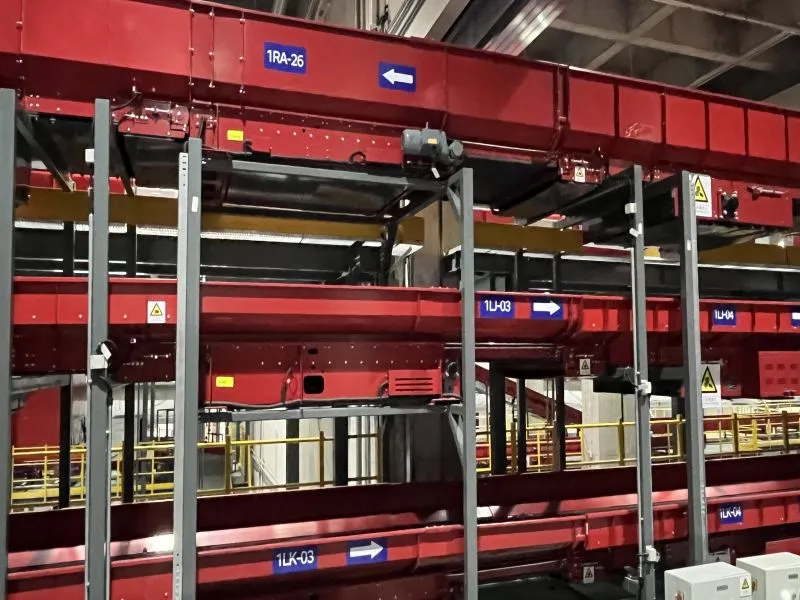

       The fire-fighting retractable conveyor belt developed by Liji logistics technology (Shanghai) Co., Ltd. mainly meets the requirements of conveyor through the wall, providing solutions for the safety emergency channel of large distribution center and multi line conveyor switching, and providing retractable fire-fighting equipment for your company, so as to meet the requirements of fire-fighting acceptance of your company in each transfer center, provincial company,  branch (subsidiary) Company and network 。  Our company will provide you with design, manufacturing, installation and after-sales services to ensure the efficient, stable and reliable operation of the equipment.  The fire-fighting retractable conveyor belt is mainly used with the fire gate and fire-proof water curtain wall, and can be used for partition through the wall.  Because the logistics sorting center usually plans intensive and complex automatic sorting lines, which are large-scale and crisscross, the fire-fighting retractable conveyor belt can not only be used as a conveyor to transport goods, but also as an auxiliary fire-fighting partition.  In line with the relevant provisions of fire protection, it greatly solves the layout and operation difficulties of the sorting system.  Can create greater social and economic benefits for your company.

What are the main parameters of the fire telescopic machine?

Linear velocity：0.6--2.0M/S         Maximum load：80kg        Running noise：75dB           Size can be customized

What are the main functions of the fire telescopic machine？

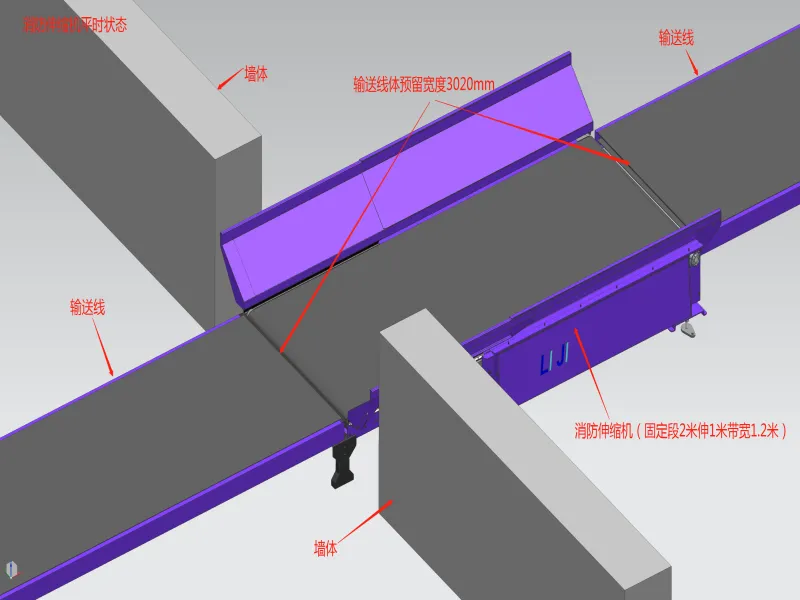

1、In the express company through the wall, can be remotely connected with the fire, when the power is cut back automatically, the fire shutter door can be lowered to block the fire

2、route switching, practical function

3、Unload at port and load at port

What is the standard bandwidth of the fire telescopic machine？

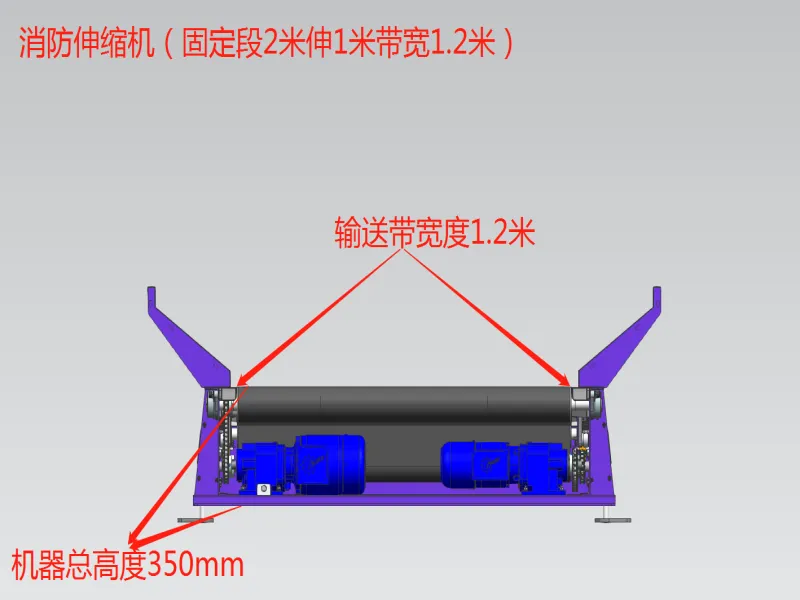

 Standard：800mm,1000mm,1200mm,1400mm（If there are other requirements, customization can be supported）

What is the standard specification of the fire telescopic machine？

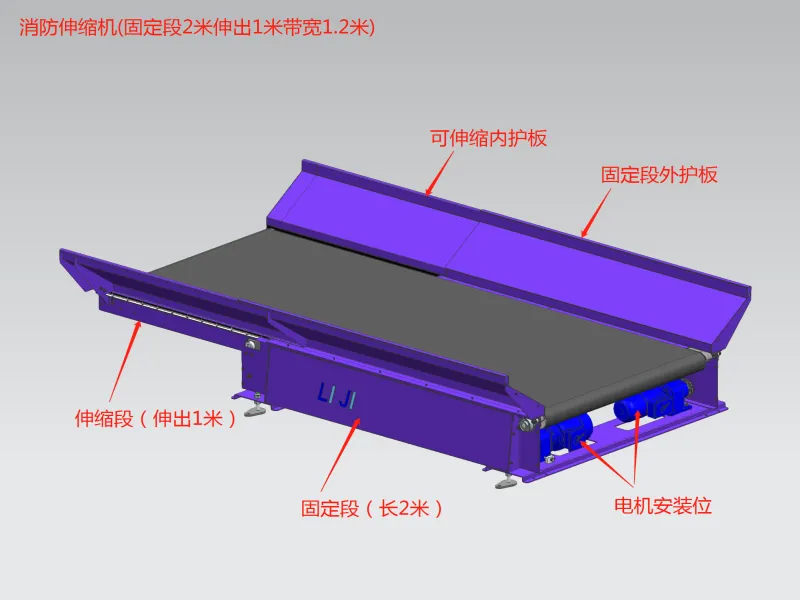

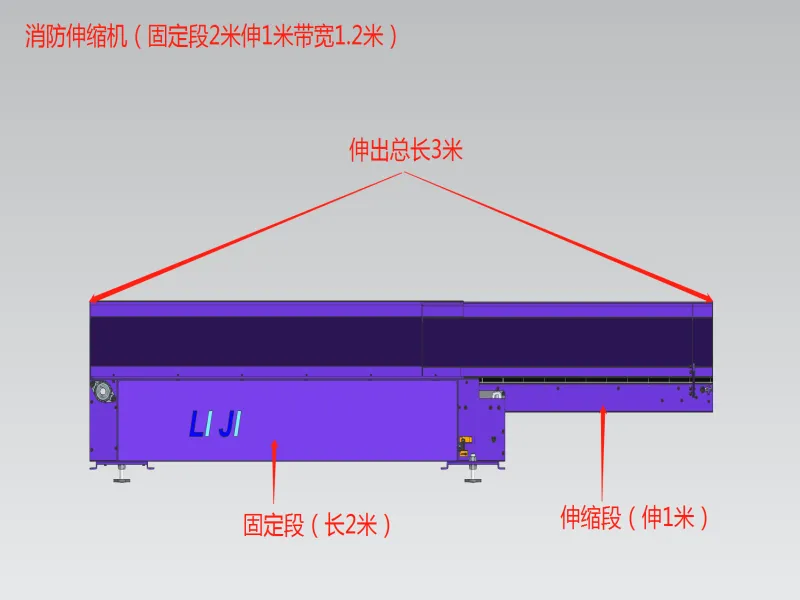

SSJ1.2(Fixed end）-0.5（Expansion section）*1.4（Belt width）/SSJ1.2-0.6*0.8/SSJ1.2-0.6*1.0/SSJ1.2-0.6*1.2;

SSJ1.3-0.6*0.8/ SSJ1.3-0.6*1.0/SSJ1.3 0.6 * 1.0 high speed/ SSJ1.3 0.6 * 1.2 high-speed/SSJ1.3-0.6 * 1.2/SSJ1.3-0.6 * 1.4;

SSJ1.4-0.6 * 1.0;

SSJ1.5-0.6 * 1.2/SSJ1.5-0.7 * 1.2;

SSJ2.0-0.7 * 1.2/SSJ2-0.7*1.2/SSJ2-1*0.8/SSJ2-1*1.0/SSJ2-1*1.2/SSJ2-1*1.2 High speed/SSJ2-1*1.4/SSJ2-1*1 High-speed;

SSJ2.1-1*1.2;

SSJ2.5-1.0*1.2/SSJ2.5-1.3*1.4/SSJ2.5-1.5*1.2 high-speed;

SSJ3.6-2*1.2;

SSJ3.9-2.5*1;

SSJ3-1*1.4;
