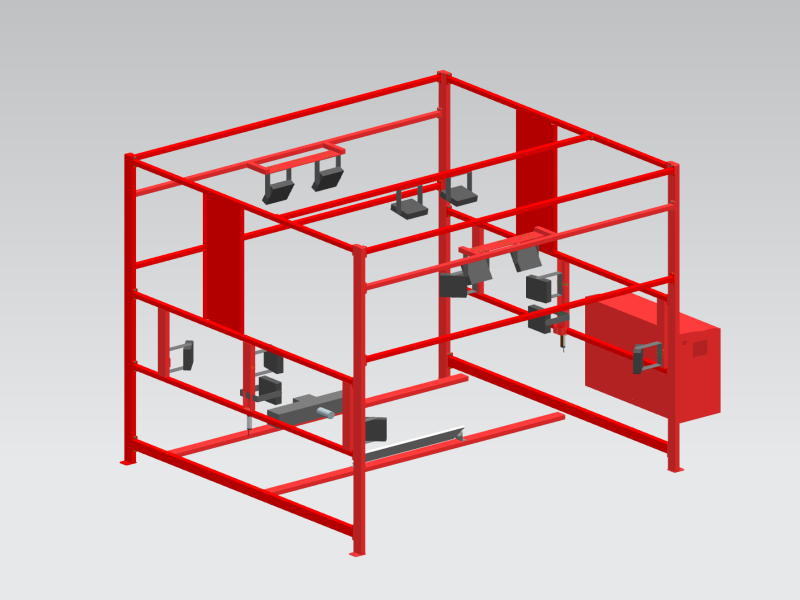

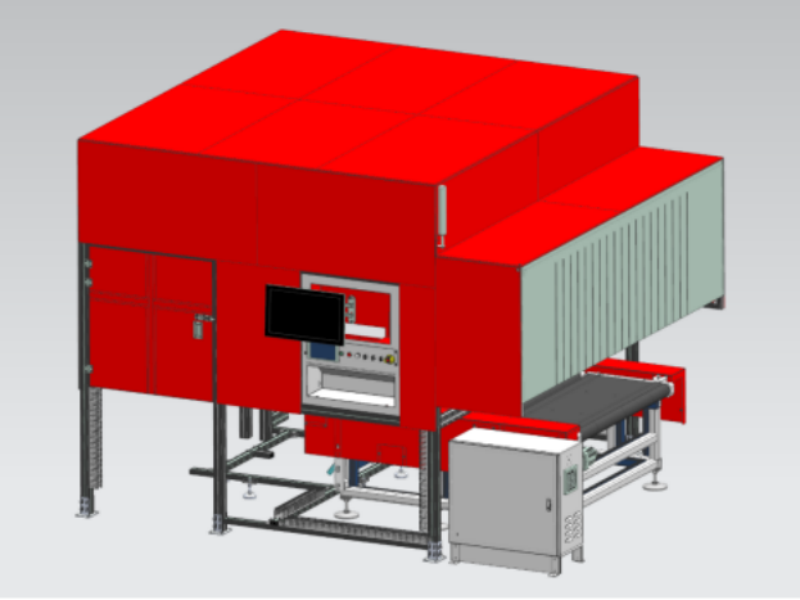

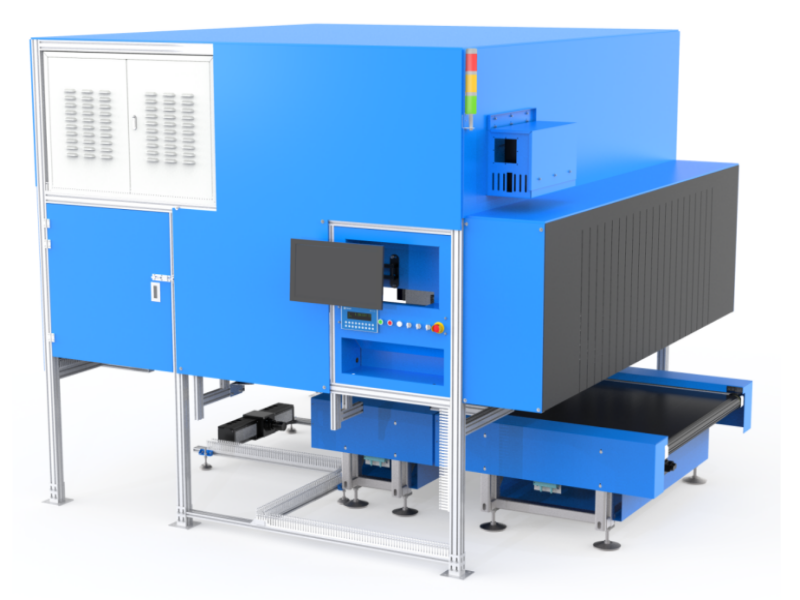

Scanning Machine

Scanning Machine is mainly used in express delivery, express transportation, logistics and e-commerce

• The maximum and minimum package sizes are 2000*1500*500mm、200*150*10mm

• Maximum cargo weight 80kg


• Bar code can read 1-6 sides

• Main Line Speed 1.0—2.8m/s

• Efficiency: Single weight is generally within 3500 pieces/hour, dual weight is generally within 5000 pieces/hour

What are the main functions of the scanning code system？

1, Record the volume measurement of the goods (single, double), weight, barcode scanning, image information acquisition and processing, with remote access function, intelligent software optimization can be real-time online monitoring, so that the goods information at a glance at any time。

2, High-speed recognition Code28, Code39, Codabar,Code93, common one-dimensional code, QR,MicroQR,DM and other common two-dimensional code, read rate of 99.99%。

3, Measure the object range of 3000mm*1000mm*1000mm accuracy can reach ± 10mm, to achieve accurate measurement of package volume。

4, Through its own algorithm high-speed weighing package weight, weighing range of 0 kg to 60 kg, accuracy up to ±30g。

5, The damaged bar code can be supplemented and distributed to the sorting port, the whole system is controlled by PLC server, accurate and efficient。

What brand of servo motor？

Mitsubishi in Japan or Huichuan in China

How much is the efficiency of simple scanning code？

Simple scanning efficiency is less than 6000 pieces/hour

What brand does the camera lens use？

Dahua or Haikang

What are the specifications of this product？

L1800 * W1200 *H 800(Specification size: According to the single weight double size is not the same)
