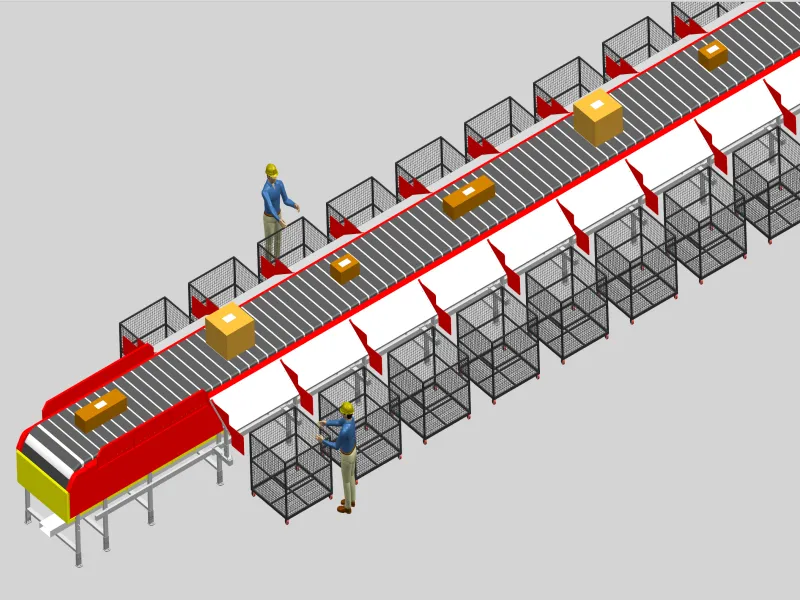

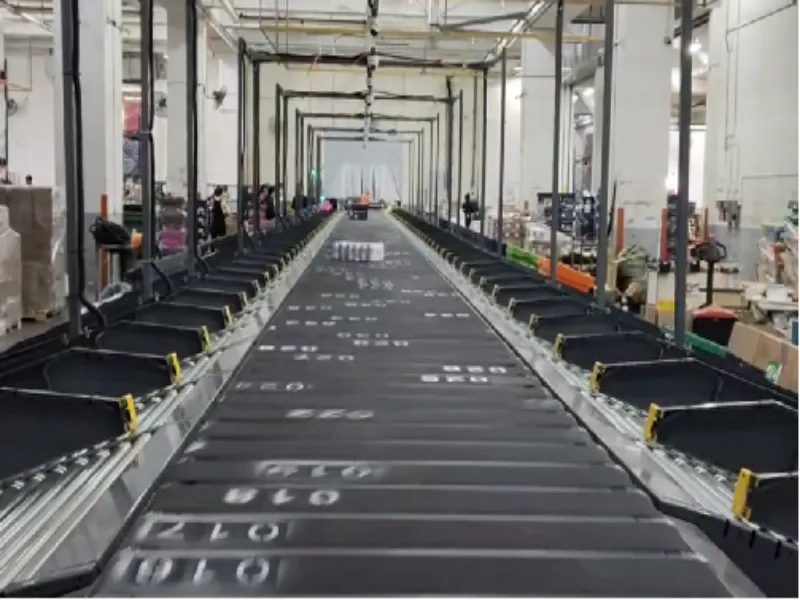

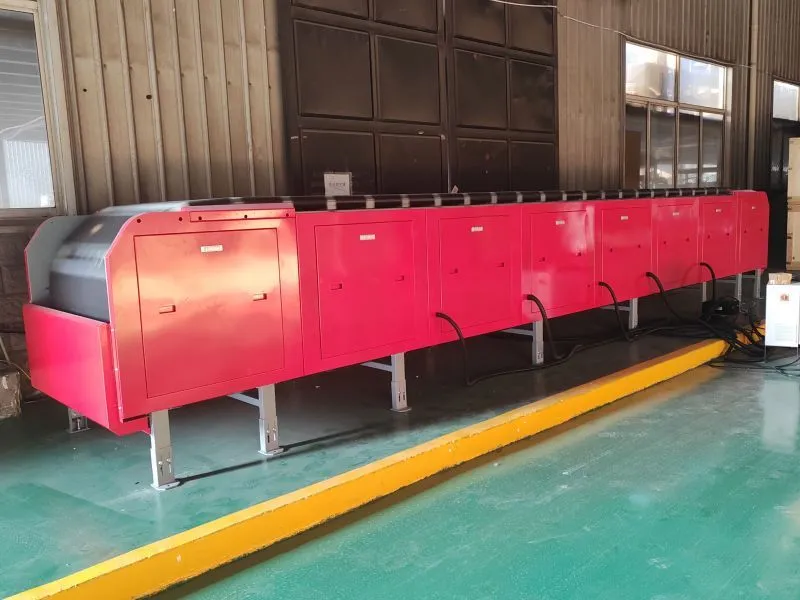

High speed linear sorting machine
Single machine is more suitable for handling 60,000 to 80,000 pieces per day. Increase the speed of on-site turnaround. Can effectively enhance the competitiveness of the market for customers, effectively reduce labor costs.
- LIJI
- ShangHai
- 40days
- 40days
- Information
Type of package | Cartons, woven bags, soft packages, long pieces | Except ball packing, sharp goods |
Packing mode of supply | Manual mode/automatio | |
Sorting efficiency | 12000PPh | Depending on the mixing of goods |
Maximum weight of package | 0 .5----60(Kg) | |
Maximum package size | 2000*1000*500mm | Customizable according to customer requirements |
Minimum sorting size | 200*150*10mm | |
Operating noise | 75dB | |
Power supply mode | Sliding power supply | Japan / Panasonic |
Host Driver | Linear motor | MD/ SEW |
What are the main advantages of this device?
High speed sorting
- The sorting speed is fast and can handle a large number of packages in a short time. For example, in large-scale e-commerce promotions, 8,000 + pieces can be sorted per hour, greatly improving the handling capacity of logistics and allowing parcels to be transferred faster.
High precision
- Using high-precision sensors and intelligent control systems, it can accurately identify various types of package information, including size, weight, destination, etc. When identifying the barcode or electronic label of the package, the error rate is extremely low, and the sorting accuracy rate is 99.99%, effectively reducing the sorting error.
High automation
- The equipment has a high degree of automatic operation, and the sorting operation is basically without manual intervention, which greatly saves manpower. Moreover, it can work stably for a long time, reducing the problem of reduced efficiency caused by human fatigue and other factors.
Save space
- The linear design makes the structure of the equipment compact, which can effectively use the space of logistics warehouses and other venues, facilitate the layout of other logistics equipment, and optimize the overall logistics process.
Adaptable to multiple packages
- Can handle packages of different sizes, shapes and weights, as small as document envelopes, as large as cartons, etc., can be sorted on high-speed linear sorting equipment, which is more versatile. Maximum package size: 2000*1200*500mm, minimum package size: 200*150*10mm.
