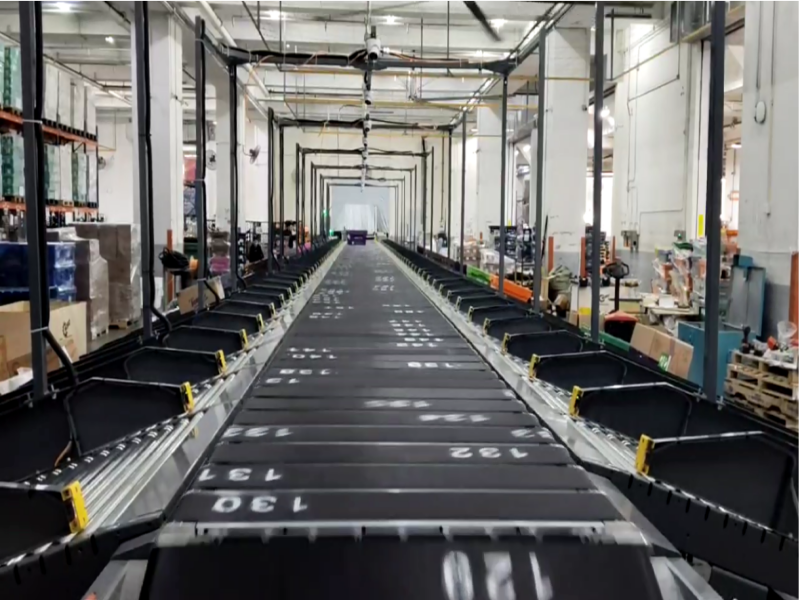

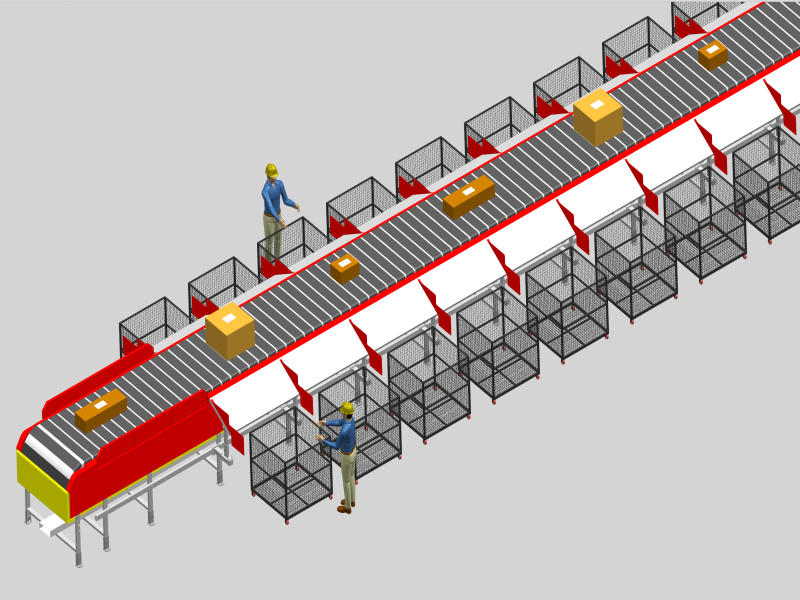

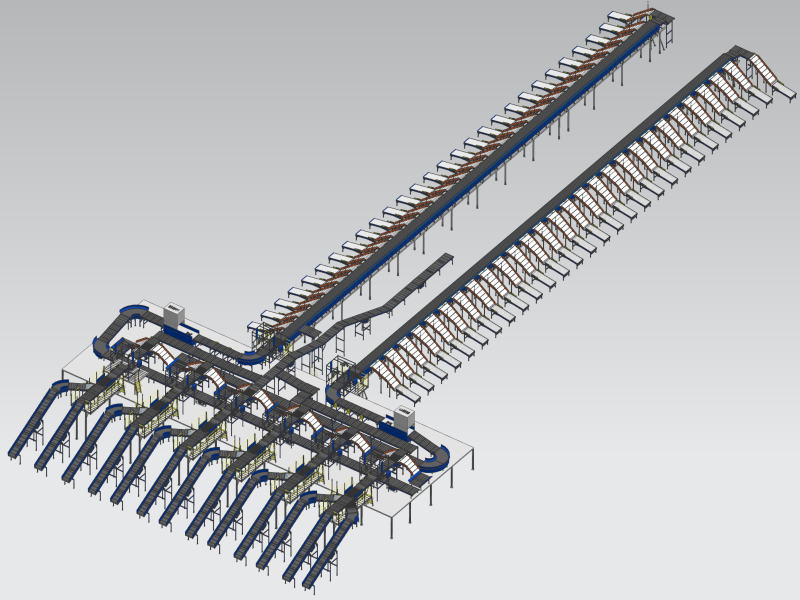

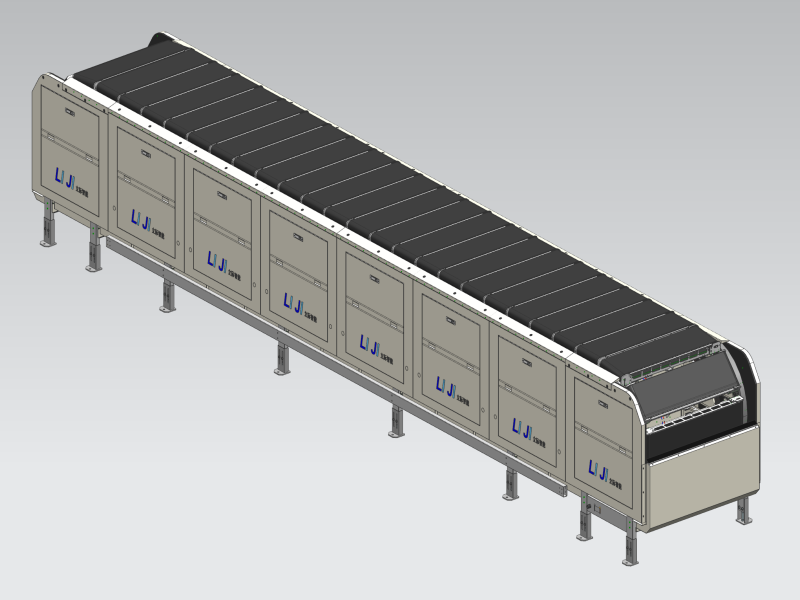

Linear sorting system
Modular parts, high speed, efficiency, accuracy, low noise, flexibility, used in: logistics, express, express, e-commerce and so on.
- LIJI
- Shanghai.China
- 90days
- 90days
- Information
- Video
Conveying and driving mode | Three-phase AC asynchronous motor | Conveying transmission mode | Permanent magnet machine |
Sorting drive mode | 48V electric servo drum | The effective width of the equipment | 1060mm |
Equipment thickness | 800 mm | The longest length of the equipment | 150 m |
Cart intercept | 200mm/300mm | Chain plate power supply method | Sliding contact line |
Cart driving power | 400W | Delivery speed | 1.2-2.5m/s |
Sorting speed | 1.5 m/s-2.5m/s | Minimum spacing of goods | 300 mm |
Delivery speed 1.5m/s | ≥5500 pieces/hour | Delivery speed 2m/s | ≥7500 pieces/hour |
Delivery speed 2.5m/s | ≥9000 pieces/hour | ||
Delivery speed 1.5m/s | ≤70 dB | Delivery speed 2m/s | ≤72 dB |
Delivery speed 2.5m/s | ≤76 dB |
What is the difference between a sliding line sorting device and a wireless powered sorting device？
| Service life | Sorting efficiency | Maintenance cost | Care and maintenance | Stability performance | |
| Sliding line sorting machine | 5-7years | 5500-9000 | high | Once a year | normal |
| Eireless powered sorting machine | 8-10years | 5500-10500 | low | maintenance-free | good |
Which fields are they mainly used in？
Express/express, e-commerce, home appliances, home textiles, airport transportation equipment
