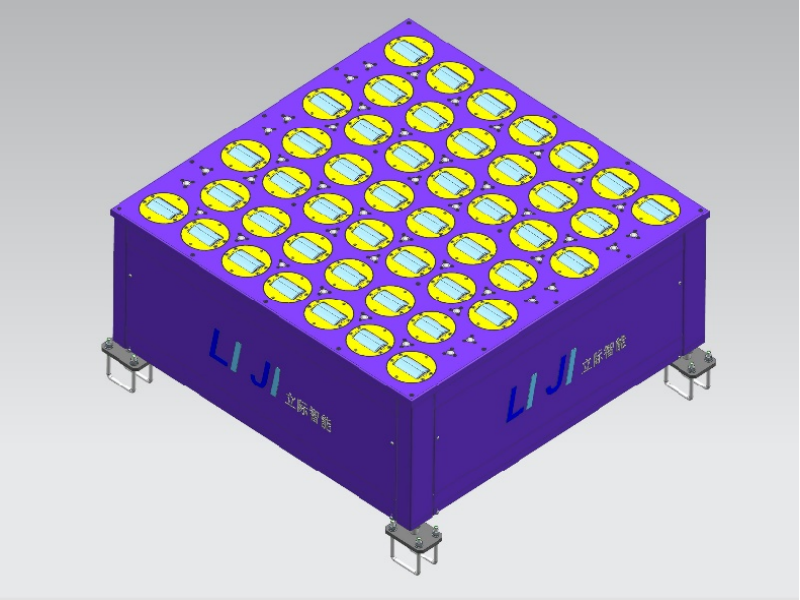

Logistics Cycloidal Sorter

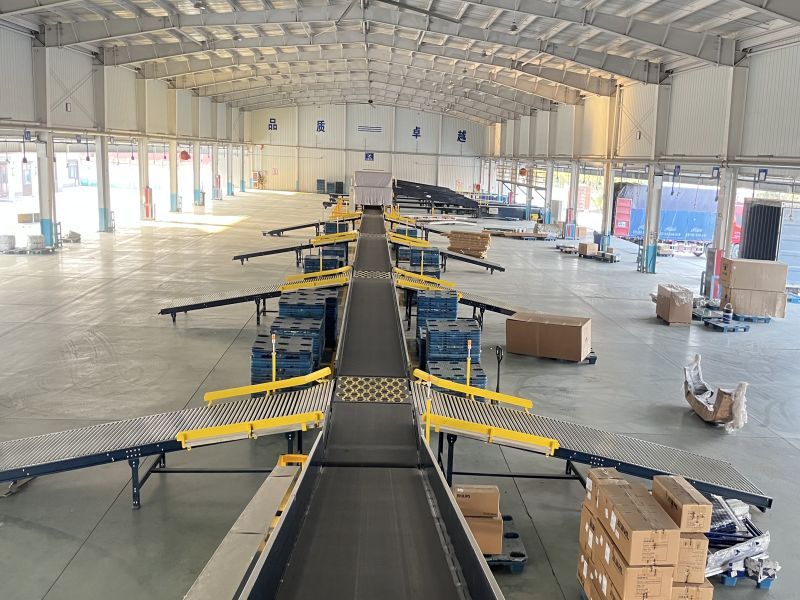

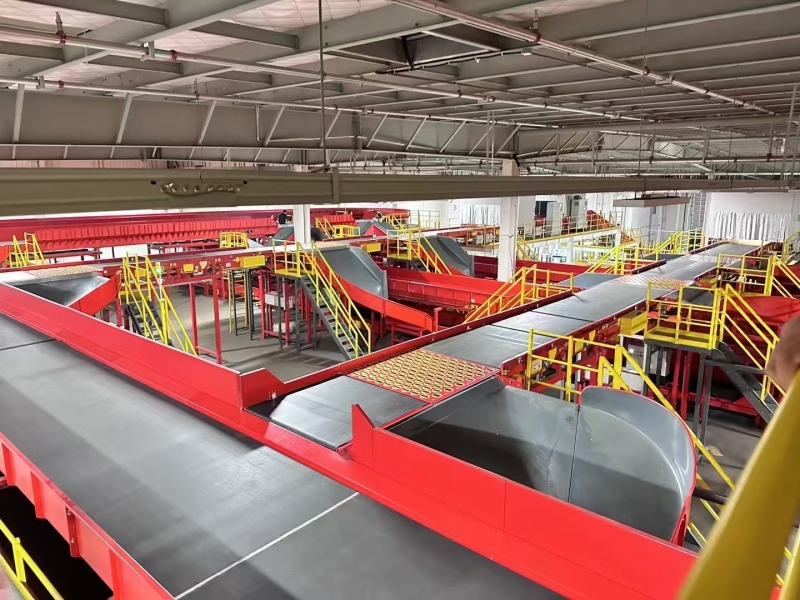

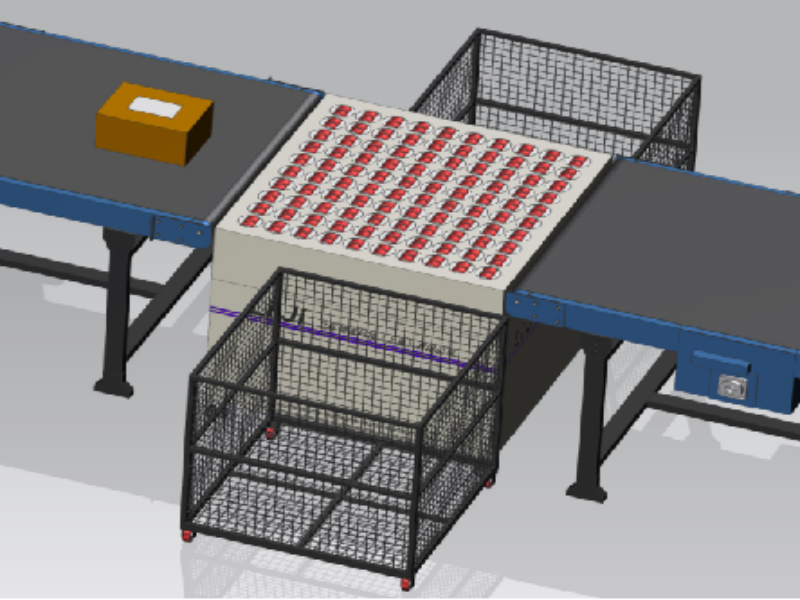

This equipment is mainly used for sorting operation on express/express/logistics site. It has soft and accurate sorting for goods. It is widely used in industrial automation to keep the goods aligned and to control the goods perfectly.
- LIJI
- Shanghai.China
- 30days
- 30days
- Information

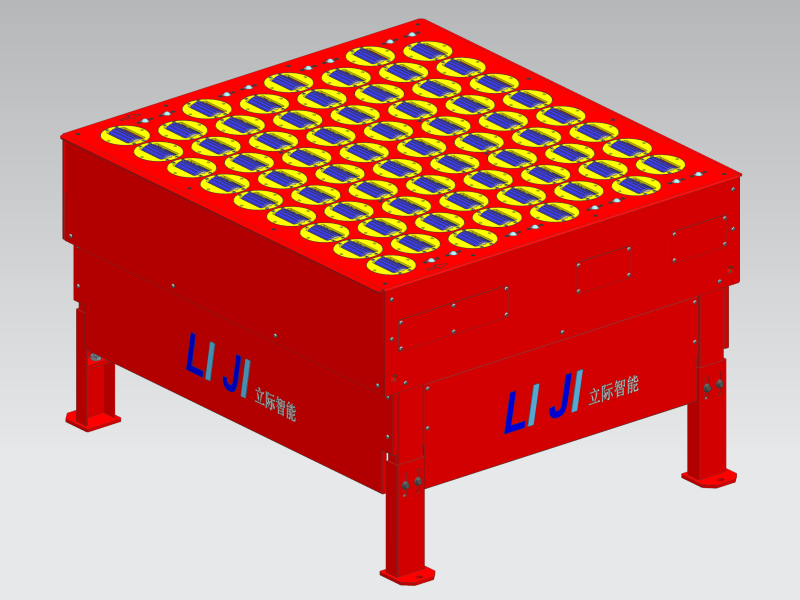

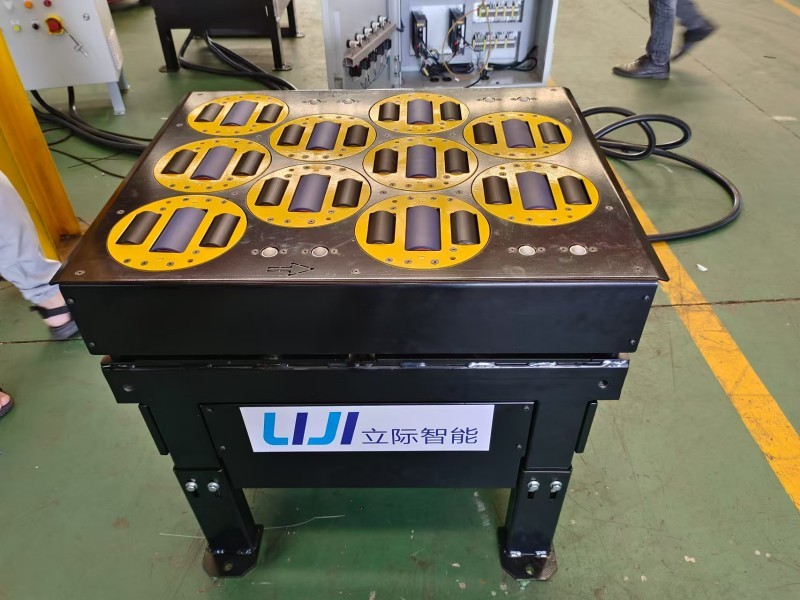

Single electric roller Cycloidal sorter is mainly used for sorting operation on express/express/logistics site.
Maximum load 50 kg
Minimum package size 300mm*200mm*30mm
Line speed 1.5 m/s -2.5 m/s
Operating noise within 75dB
Efficiency 4000-5000pp /H
The swing angle is servo control, the diversion port is 30, 45, 90, optional.

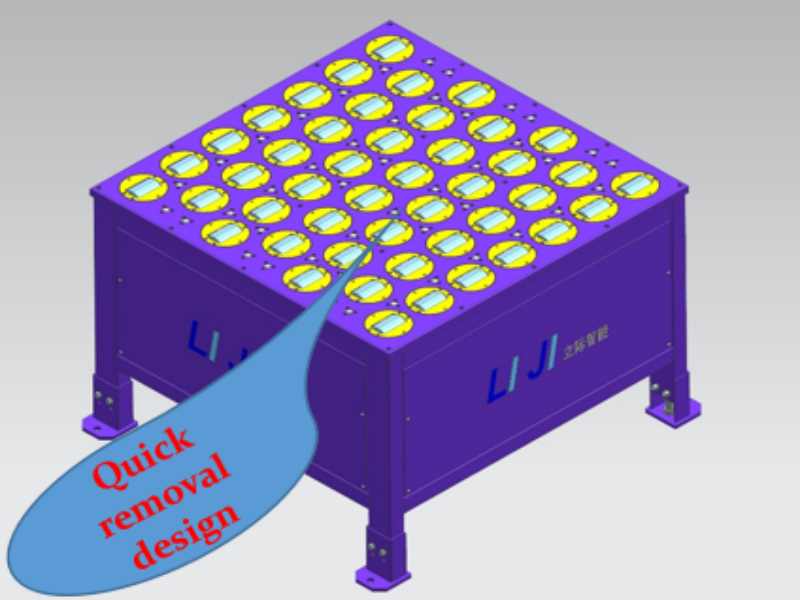

Higher efficiency, gentle steering, single and double shunt,60 seconds to change the module wheel.

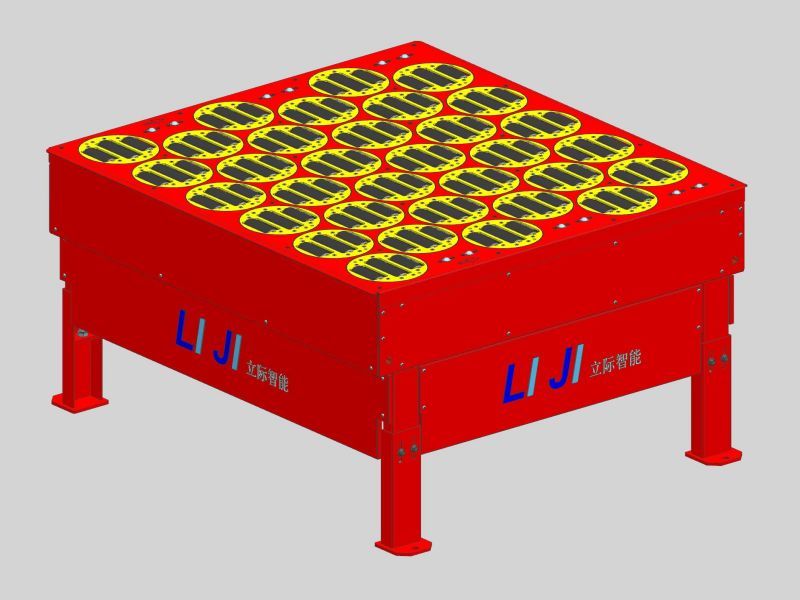

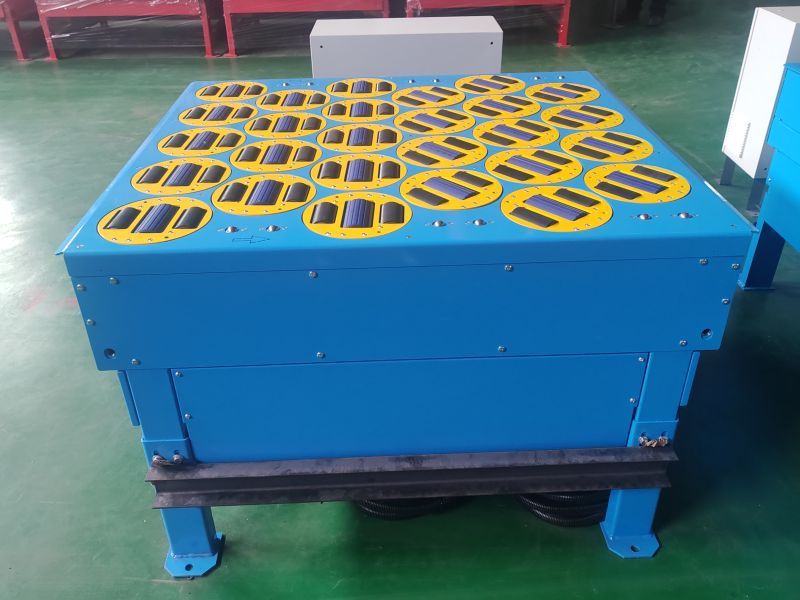

Three electric roller Cycloidal sorting machine is mainly used for sorting operation on express/express/logistics site.
Maximum load40kg
Minimum package size 200mm*150mm*10mm
Line speed 1.5 m/s -2.5 m/s
Operating noise within 75dB
Efficiency 4000-5000pp /H
The swing angle is servo control, the diversion port is 30, 45, 90, optional.
Higher efficiency, gentle steering, single and double shunt,60 seconds to change the module wheel.
Carry more electric roller Cycloidal sorting machine is mainly used for sorting operation on express/express/logistics site.
Maximum load 80kg
Minimum package size 200mm*150mm*10mm
Line speed 1.5 m/s -2.5 m/s
Operating noise within 75dB
Efficiency 4000-5000pp /H
The swing angle is servo control, the diversion port is 30, 45, 90, optional.
Higher efficiency, gentle steering, single and double shunt,60 seconds to change the module wheel.
What is the sortable range？
Minimum piece 200*150*10 mm,Maximum size 1200*1000*700mm
Which parcels cannot be sorted？
Slender parts, Ding hook thorns, scattered parts, easy to damage, wooden frame, arch, spherical can not be sorted.
What are the standard models？
L830*W860*H700mm/L1130*W1060*H700mm/L1130*W1260*H700mm/L1460*W1860*H700mm
(If there are other models can support the order, the order period is 40 days.）
How big is the total power？
Normal 2000W, depending on the model, the total power is different.
What are the installation methods？
Floor style and shelf style
How long is the service life？
8-10years
How many servomotors were used？
3 groups
